City Bus

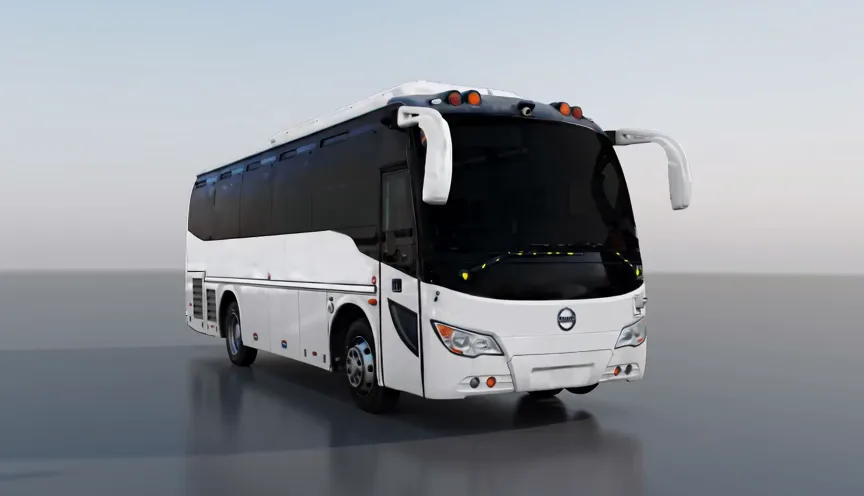

HSB 6872
Built for the rhythm of the city.
Explore every angle
Designed to be experienced.
An adaptable passenger platform designed around efficient daily operation, accessibility and dependable city performance.
EXPLORE THE VEHICLE
HSB 6872360°
Preparing views…At a glance
Key specifications
Technical data structured from Hafilat’s official product specification. Final configuration may vary by customer and market.
Dimensions & capacity
- Overall dimensions
- 8,720 × 2,450 × 3,350 mm
- Wheel track (front / rear)
- 2,020 / 1,800 mm
- Wheelbase
- 4,200 mm
- Overhang (front / rear)
- 1,790 / 2,730 mm
- Passenger capacity
- 35 + Driver + Guide (2+2 layout)
Engine & drivetrain
- Engine
- Cummins ISDe210-40
- Configuration
- Rear-mounted turbo diesel, intercooled
- Rated power
- 155 kW (210 HP) at 2,200 rpm
- Maximum torque
- 800 Nm at 1,400 rpm
- Displacement
- 6.7 litres
- Emission standard
- Euro IV
- Transmission
- QJS6-80 manual 6-speed
Chassis & running gear
- Axle permissible load
- Front 4.2 t / Rear 9 t
- Suspension
- Leaf spring with front and rear stabilizers
- Steering
- ZF 8095 integral power steering
- Brakes
- Front and rear drum brakes
- Safety systems
- Haldex auto slack adjuster and Wabco ABS
- Tyres
- 8.25R20 tubeless radial
- Fuel capacity
- 240 litres
- Electrical system
- 2 × 165 Ah batteries, Prestolite generator
